Specification:
Shipping:

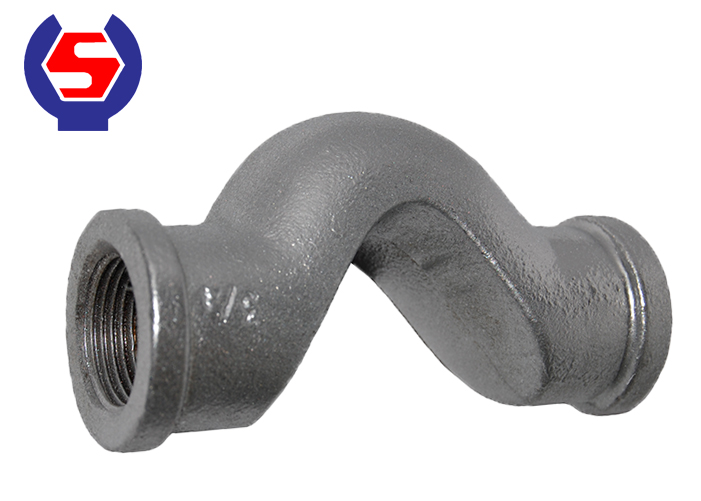

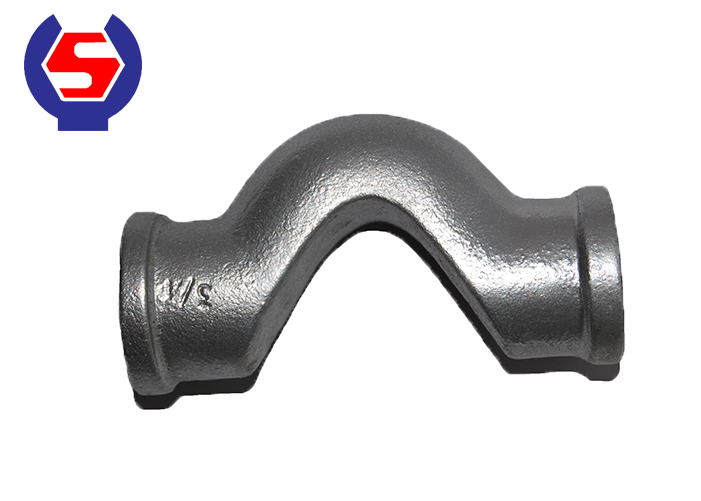

| Malleable Iron Pipe FittingsFIG NO. 85 Crossover | |
| Material | Black heart malleable iron |
| Surface Treatment | a. Black (as cast) |
| b. Galvanized (hot dip zinc coating) | |
| c. Epoxy painting (250-300 Microns) | |
| DIN Standard(According to EN10242) | Exported to many European countries |
| Materials: DIN1692 | |
| Dimensions:DIN2950,EN10242,ISO49 | |
| Threads: DIN2999 | |
| American Standard | Export to North and South American countries |
| Materials: ANSI/ASME A197-79 | |
| Dimensions:ANSI/ASME B16.3-85 | |
| Threads: ANSI/ASME B1.20.1 | |
| British Standard | Export to Middle East countries |
| Dimensions: BS EN 10242, BS 143&1256 | |
| Threads: ISO 7/1 | |
| ABNT 6943 Standard | Export to Brazil |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Mechanical Properties | Tensile Strength: ≥ 33kg/mm² |
| Elongation Rate: ≥ 8% | |
| Hardness: ≤ HB150 | |
| Hydrostatic Test | Test Pressure: 25kg/cm²,100% test before shipment |
| Working Pressure: 16kg/cm² | |
| Type | Banded without ribs,Beaded with ribs,Beaded without ribs |
| Series | Heavy, standard, medium, light |
| Certificate | BSI, ANAB, ISO9001,FM,UL |
| Applications | Suitable for Pipe lines connect of steam, air, gas, oil and so on |
| Buyer's drawings or designs are available | |
| Package | 1.Cartons without pallets |
| 2. Cartons with pallets | |
| 3. Double woven bags Or as buyer's requirements | |
| Delivery detail | According to the quantities and specifications of each order |
| According to the quantities and specifications of each order | |
