Malleable Iron Pipe Clamps Type 173 Single Swivel Combination A versatile swivel fitting, useful for awkward applications where angles cannot be accommodated by adjustable angle fittings. The through tube (sloping) cannot be joined within the fitting. The assembly is riveted together, although items can be supplied separately as 173M and 173F. Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.
| ||
Body Material Standard | Malleable Iron, meet standard ASTM A197 | |
Screw | Stainless and Carbon Steel | |
Tensile Strength | >=350Mpa | |
Elongation | >=10% | |
Hardness | HB<=150 | |
Size Available | AA to E (OD size 27-60 MM) | |
Surface Treatment | Hot Dipped Galvanized, Black, Zinc Plated & Powder Coated | |
Pipe Clamp Size | Nominal Bore | Outside Diameter |
AA21 | 1/2’’ | 21.3mm |
A27 | 3/4’’ | 26.9mm |
B34 | 1’’ | 33.7mm |
C42 | 1-1/4’’ | 42.4mm |
D48 | 1-1/2’’ | 48.3mm |
E60 | 2’’ | 60.3mm |

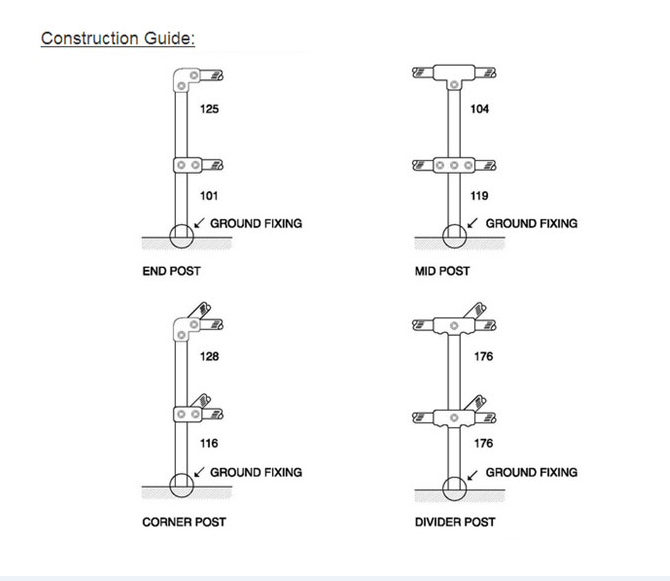

Malleable Iron Pipe Clamps are easlily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the tube to be used (48.3mm=1-1/2" nominal bore in this case)Hence a 90° elbow suitable for an 1-1/2" norminal bore tube in this example would be denoted as a 125-D48.

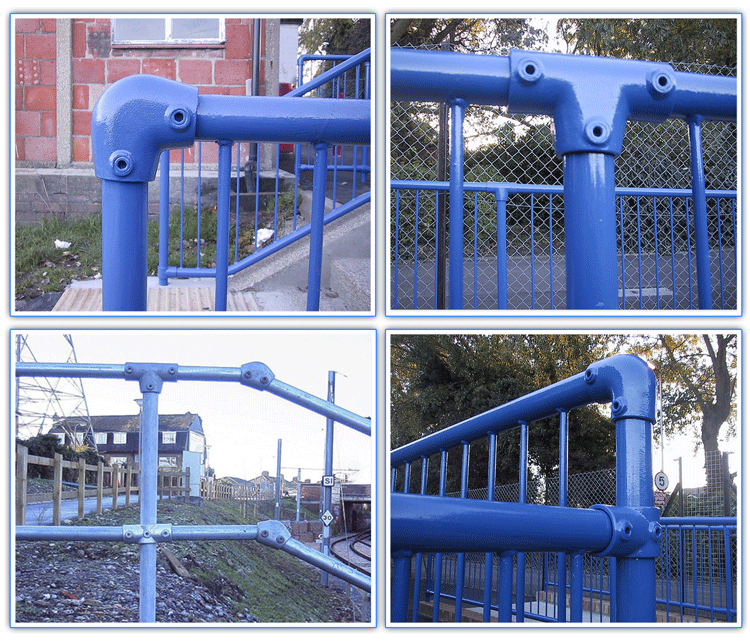

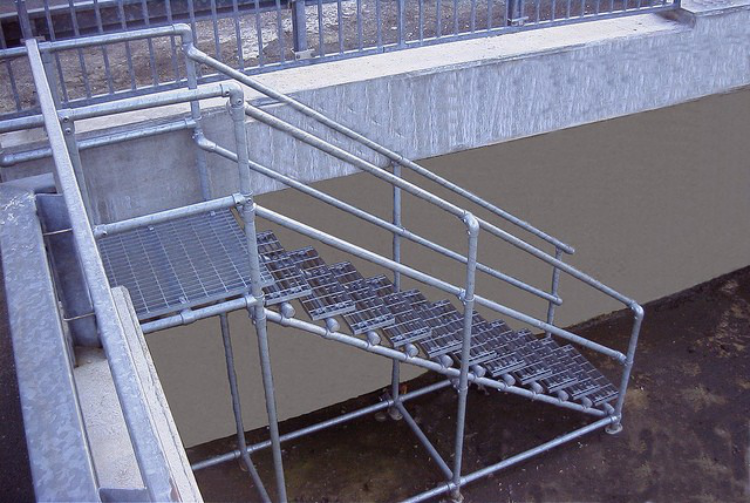

Malleable Iron Pipe Clamps are used for a versatile, multi-purpose system. The flexibility of the system allows complex structures to be assembled in a quick and efficient manner.
Powder Coat finishes to standard RAL colors are available on request.
