Malleable Iron Pipe Clamps Type 167 Double Swivel Connection A versatile swivel fitting, useful for awkward applications where angles cannot be accommodated by adjustable angle fittings. The assembly is riveted together, although items can be supplied separately as 167M and 2 x 173F. The through tube (vertical in photo) cannot be joined within the fitting. Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.
| ||
Body Material Standard | Malleable Iron, meet standard ASTM A197 | |
Screw | Stainless and Carbon Steel | |
Tensile Strength | >=350Mpa | |
Elongation | >=10% | |
Hardness | HB<=150 | |
Size Available | AA to E (OD size 27-60 MM) | |
Surface Treatment | Hot Dipped Galvanized, Black, Zinc Plated & Powder Coated | |
Pipe Clamp Size | Nominal Bore | Outside Diameter |
AA21 | 1/2’’ | 21.3mm |
A27 | 3/4’’ | 26.9mm |
B34 | 1’’ | 33.7mm |
C42 | 1-1/4’’ | 42.4mm |
D48 | 1-1/2’’ | 48.3mm |
E60 | 2’’ | 60.3mm |

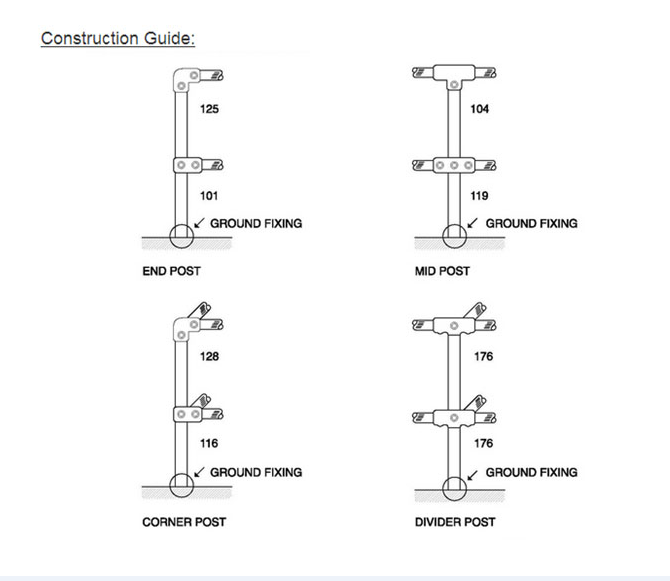

Malleable Iron Pipe Clamps are easlily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the tube to be used (48.3mm=1-1/2" nominal bore in this case)Hence a 90° elbow suitable for an 1-1/2" norminal bore tube in this example would be denoted as a 125-D48.

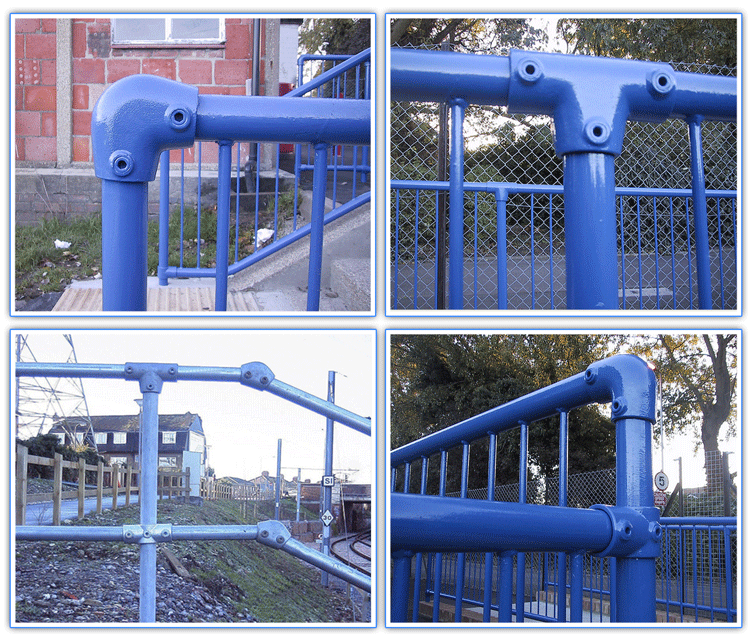

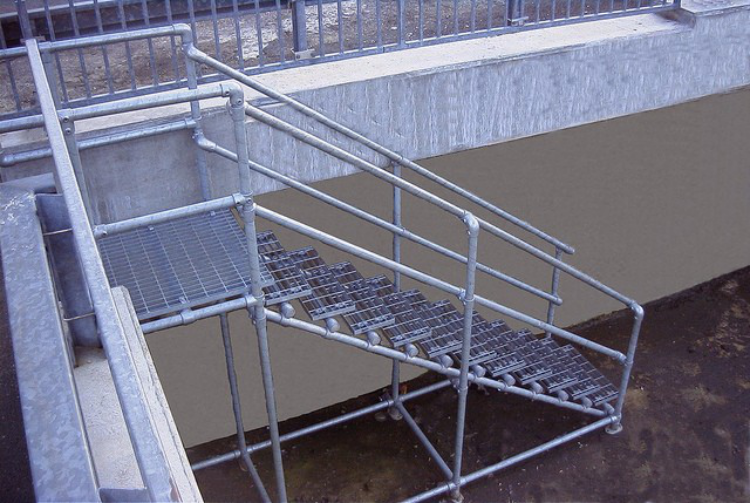

Malleable Iron Pipe Clamps are used for a versatile, multi-purpose system. The flexibility of the system allows complex structures to be assembled in a quick and efficient manner.
Powder Coat finishes to standard RAL colors are available on request.
