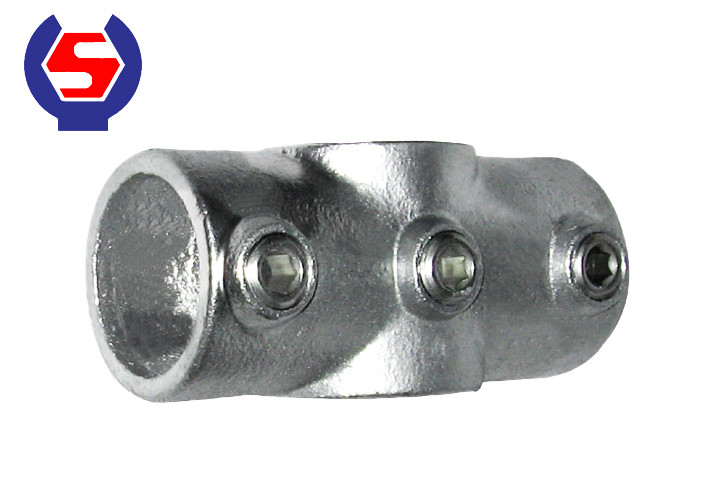

Malleable Iron Pipe Clamps Type 119 Two Socket Cross 90° joint, often used between middle rail and uprights on level sites and often paired with type 101 or 104. The through tube (vertical) cannot be joined within the fitting. | ||
| Body Material Standard | Malleable Iron, meet standard ASTM A197 | |
| Screw | Stainless and Carbon Steel | |
| Tensile Strength | >=350Mpa | |
| Elongation | >=10% | |
| Hardness | HB<=150 | |
| Size Available | AA to E (OD size 27-60 MM) | |
| Surface Treatment | Hot Dipped Galvanized, Black, Zinc Plated & Powder Coated | |
| Pipe Clamp Size | Nominal Bore | Outside Diameter |
| AA21 | 1/2’’ | 21.3mm |
| A27 | 3/4’’ | 26.9mm |
| B34 | 1’’ | 33.7mm |
| C42 | 1-1/4’’ | 42.4mm |
| D48 | 1-1/2’’ | 48.3mm |
| E60 | 2’’ | 60.3mm |
Malleable Iron Pipe Clamps are easlily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the tube to be used (48.3mm=1-1/2" nominal bore in this case)Hence a 90° elbow suitable for an 1-1/2" norminal bore tube in this example would be denoted as a 125-D48.
Malleable Iron Pipe Clamps are used for a versatile, multi-purpose system. The flexibility of the system allows complex structures to be assembled in a quick and efficient manner.
Powder Coat finishes to standard RAL colors are available on request.
