Specification:
Shipping:

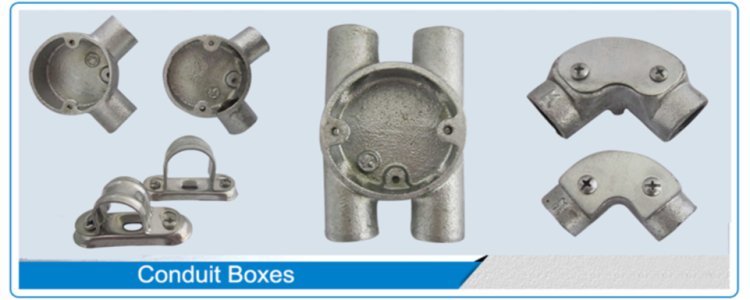

Electrical Conduit Box Extension Pattern Terminal Type
Material | Malleable Iron |
Finishes | Black Enamel, Hot dipped galvanized |
Standard | BS EN 50086 -1 |
Small Model | 60.3mm internal diameter with 25-28mm deep, tapped M4 at 50.8mm centres. |
Large Model | 81mm internal diameter, for conduits of 20 & 25mm diameter with 35mm deep, and 32mm diameter with 38mm deep. Tapped M4 at 71.5mm centres. |
Small Special Deep Model | 60.3mm internal diameter x 62mm deep. Tapped M4 at 50.8mm centre. |
Note | All the above models are available with tapped hole in the base for grounding screw. Covers and fixing screws need to be ordered separately. |
