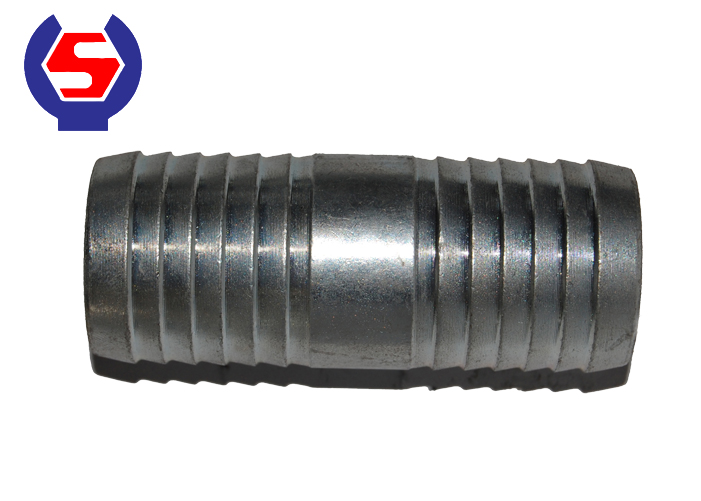

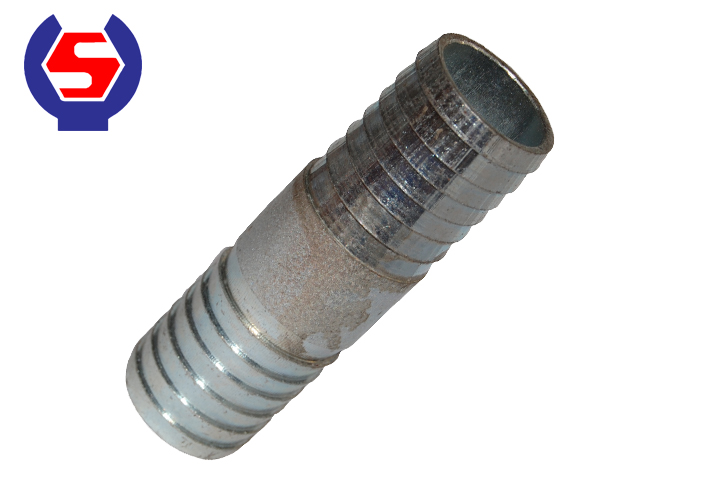

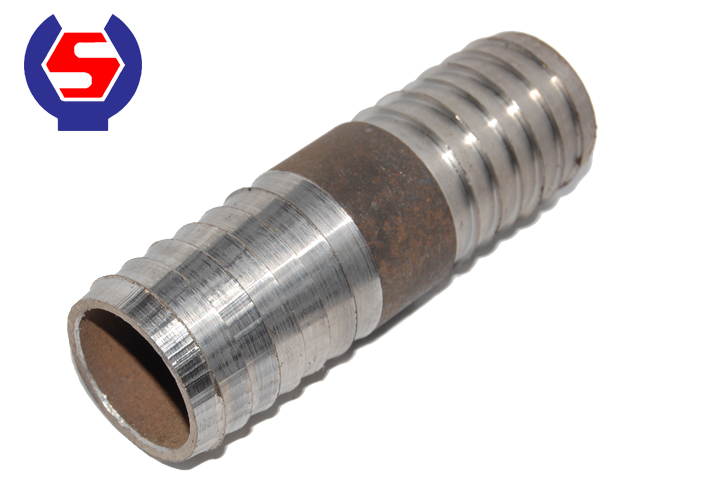

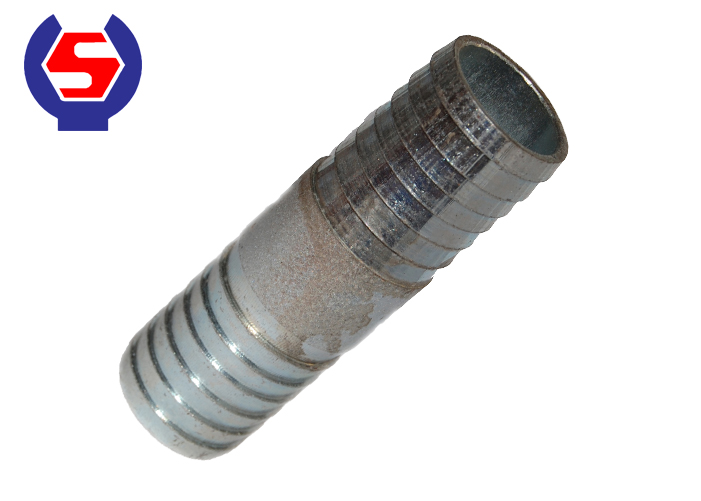

Hose Nipples
Product: hose nipples or hose mender
Features:
1) Material: ERW steel pipes or seamless steel pipes
2) Surface: Hot-dipped galvanized or electrical galvanized
3) Used for connecting of hoses, customers’ drawing or designs are available.
4) Size available from 1/2" to 6"
| KING NIPPLES AND HOSE MENDER | |||||||||||||
| TYPE OF NIPPLE | inch | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 5" | 6" | 8" |
| OUTSIDE DIAMETER | mm | 21 | 27 | 32 | 42 | 48 | 60 | 76 | 89 | 114 | 140 | 165 | 219 |
| HOSE END DIAMETER | mm | 13.5 | 20 | 26 | 32.5 | 39 | 52 | 64.5 | 77 | 103 | 128 | 153 | 204 |
| NOTE: | |||||||||||||
| STANDARD: BS EN10241, ASTM A733, DIN2982 | |||||||||||||
| MATERIAL: ASTM A106, A53; ST33, ST45-8, Q195, 20# | |||||||||||||
| THREAD: BSPT, NPT, DIN (ISO7/1, DIN 2999, ANSI B1.20.1) | |||||||||||||
| THE LENGTH AND SIZES CAN BE MADE AS PER CUSTOMER'S REQUEST. | |||||||||||||
